Anti Collapse Mesh
Why buy Anti Collapse Mesh from Partitions Direct?
Fast and free quotation
Modular or bespoke systems to suit any requirement
Delivered from stock in 3-5 working days
Free nationwide anti-collapse mesh site survey
Optional nationwide installation service
Price promise guarantee
Experienced friendly staff
Email us for an Anti Collapse Mesh quotation with 3D design drawing

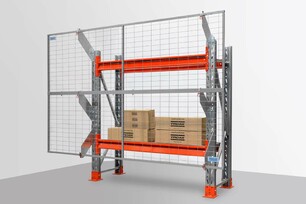

The Troax Anti-Collapse Mesh system is the strongest on the market and is a durable and protective mesh screen used to prevent accidents caused by goods falling from or being mistakenly knocked off pallet racking. Troax anti-collapse is made from fully welded mesh panels with a 19x19mm tubular steel frame, tested to withstand an impact of up to 2500 joules. This is equivalent to a pendulum weighing 160 kg and travelling at 20 km/h.
The panels are available in three models with different levels of protection. The anti-collapse system is fast, easy and versatile to assemble.
Anti Collapse Mesh Installation Examples
Anti Collapse Mesh Panel Options
Description:
PD300 is the most cost-effective panel to use as a base in our Anti-Collapse System.
Specification:
Frame: 19x19mm (box)
Wire: 2.5mm
Mesh size: 50x100mm
Standard Panel Sizes:
Heights: 2,200 & 1,100mm
Widths: 700, 1,200 & 1,500mm
Description:
PD350 is our most popular panel to use as a base in Troax anti-collapse mesh system.
Specification:
Frame: 19x19mm (box)
Wire: 2.5mm
Mesh size: 50x50mm
Standard Panel Sizes:
Heights: 2,200 & 1,100mm
Widths: 700, 1,200 & 1,500mm
Specification:
Frame: 19x19mm (box)
Wire: 2.5mm
Mesh size: 25x25mm
Standard Panel Sizes:
Heights: 2,200 & 1,100mm
Widths: 700, 1,200 & 1,500mm
Anti Collapse Bracket Options
Email us for your fast, free Anti-Collapse Mesh quotation with 3D design drawing
